Дом / 3,6 В 500 мАч широкотемпературный Ni-MH аккумулятор для вычислительного блока TBOX

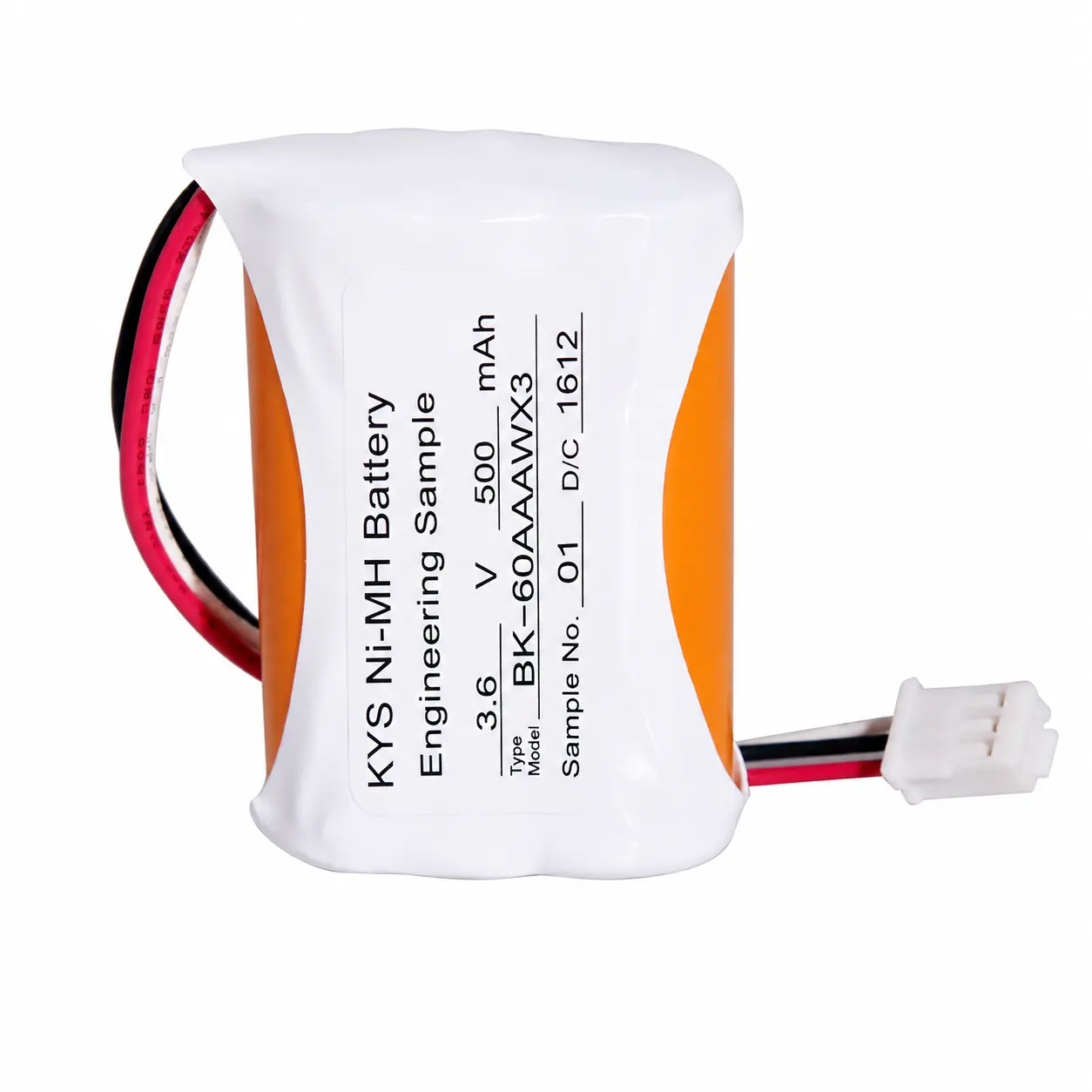

3.6V 500mAh wide-temperature Ni-MH battery specially designed for TBOX vehicle computing units. It provides stable backup power for automotive electronics, GPS tracking, telematics, and communication systems, ensuring reliable performance in both high and low temperature environments.
What's in the Box
| Спецификация | Details |
|---|---|
| Номинальное напряжение | 3.6V |
| Номинальная ёмкость | 500mAh |
| Размер батареи | 11 × 33 × 48 mm |
| Charging Temperature | -20°C до 60°C |
| Discharge Temperature | -20°C to 85°C |
Запрос
Вернуться к списку продуктов
Обзор
The 3.6V 500mAh Wide-Temperature Ni-MH Battery is specially designed for TBOX vehicle computing units, delivering stable and reliable power in harsh automotive environments. With excellent high and low temperature performance, this battery supports long service life, safe operation, and consistent energy output. Its compact design makes it ideal for automotive electronics, telematics systems, GPS tracking, and vehicle communication devices.
Multi-scenario Adaptation
Remote Control
Toy
Keyboard
Alarm Clock
Shaver
Water Heater
Gas Stove
Gas Meter
Parking Lock
Flashlight
Blood Pressure Monitor
Microphone
Информация о продукте
| Key Features | Details |
|---|---|
| Low-Temperature Discharge | Supports discharge from -20°C to 85°C |
| Low-Temperature Charging | Supports charging from -20°C to 60°C |
| Wide-Temperature Storage | Supports storage from -40°C to 85°C |
| Цикл жизни | More than 1000 charge/discharge cycles |
Product Specification
| Информация о продукте | Specifications |
|---|---|
| Battery Specification | NI-MH AAA 500mAh 3.6V |
| Cell Model | NI-MH AAA 500mAh 1.2V |
| PTC | 260PTC |
| Protection Circuit | Without Protection Circuit |
| Номинальное напряжение | 3.6 V |
| Номинальная ёмкость | 500 mAh |
| Размер батареи | 11 × 33 × 48 mm |
| Внутреннее сопротивление | ≤ 180 mΩ |
| Battery Weight | 80 g |
| Charging Conditions | 50 mA × 16 hours / 250 mA × 2.4 hours |
| Непрерывный разрядный ток | 1.0 A |
| Protection Current | 5.2 A (260PTC) |
| Зарядное напряжение | 4.5 V |
| Cut-off Discharge Voltage | 3.0 V |
| Цикл жизни | ≥ 1000 cycles (0.5C charge / 1.0C discharge, remaining capacity ≥ 60%) |
| Charging Temperature | -20°C до 60°C |
| Discharge Temperature | -20°C to 85°C |
| Температура хранения | -40°C to 85°C |
