Дом / 7,4V 2600mAh 2S1P 18650 Li-ion аккумуляторный блок для систем мониторинга инфузионных насосов, срок службы 1200 циклов
The 7.4V 2600mAh 2S1P 18650 lithium-ion battery pack delivers stable, rechargeable power for infusion pump monitoring systems and portable medical equipment. Designed for up to 1,200 cycles, it helps reduce replacement frequency and maintenance costs. Built-in protection supports safer operation, while customizable connectors, wiring, housings, and sensors ensure compatibility with different clinical and home healthcare applications in daily use worldwide.
- Модель: 18650-2S1P
- Размеры ячеек: 18× 65 mm
- Номинальное напряжение: 7.4V
- Ток разряда: 7.8 A
- Вместимость: 2600 mAh
- Внутреннее сопротивление: 80 mΩ
- Приложение: Infusion Pump Monitoring Systems
- Зарядное напряжение: 8.4 V
Получите бесплатную оценку
Вернуться к списку продуктов
Обзор

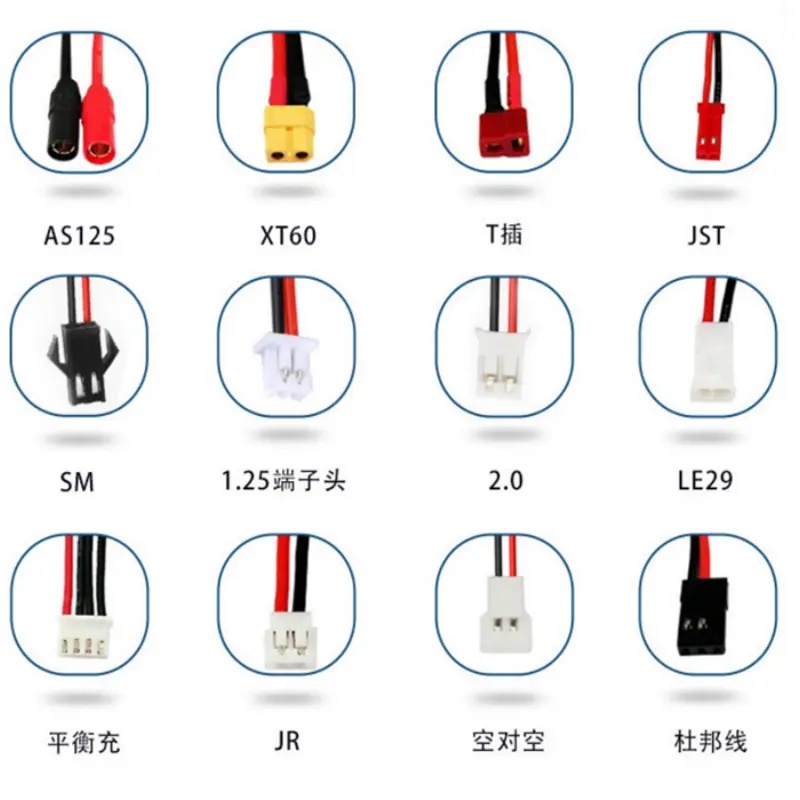

The 7.4V 2600mAh 2S1P 18650 lithium-ion battery pack is designed for infusion pump monitoring systems and other portable medical equipment requiring stable, rechargeable power. Built with two high-quality 18650 cells connected in series, it delivers a nominal voltage of 7.4V and dependable 2600mAh capacity for consistent operation. With a cycle life of up to 1,200 charges under suitable operating conditions, the pack helps reduce replacement frequency and long-term maintenance costs. An integrated protection circuit helps protect against overcharging, over-discharging, overcurrent, and short circuits, supporting safer use in clinical environments. The battery can be customized with specific connectors, wire lengths, housings, temperature sensors, and communication functions to match different infusion pump designs. Compact construction, reliable discharge performance, and OEM/ODM flexibility make this battery pack suitable for hospitals, clinics, ambulances, and home healthcare applications where uninterrupted monitoring and mobility are essential. It also supports customized labeling, packaging, and validation requirements for manufacturers.
Информация о продукте
Области применения
- Инфузионные насосы
- Syringe pumps
- Infusion monitoring systems
- Portable patient monitors
- Medical diagnostic equipment
- Emergency medical devices
- Home healthcare equipment
- Portable clinical instruments
Технические параметры
| Модель | 18650-2S1P |
| Размер ячейки | 18 × 65mm |
| Ток разряда | 7.8 A |
| Номинальное напряжение | 7.4V |
| Вместимость | 2600 мАч |
| Внутреннее сопротивление | 80 mΩ |
| Метод обработки | Персонализация по мере необходимости |
| Приложение | Infusion Pump Monitoring Systems |
| Зарядное напряжение | 8.4V |
