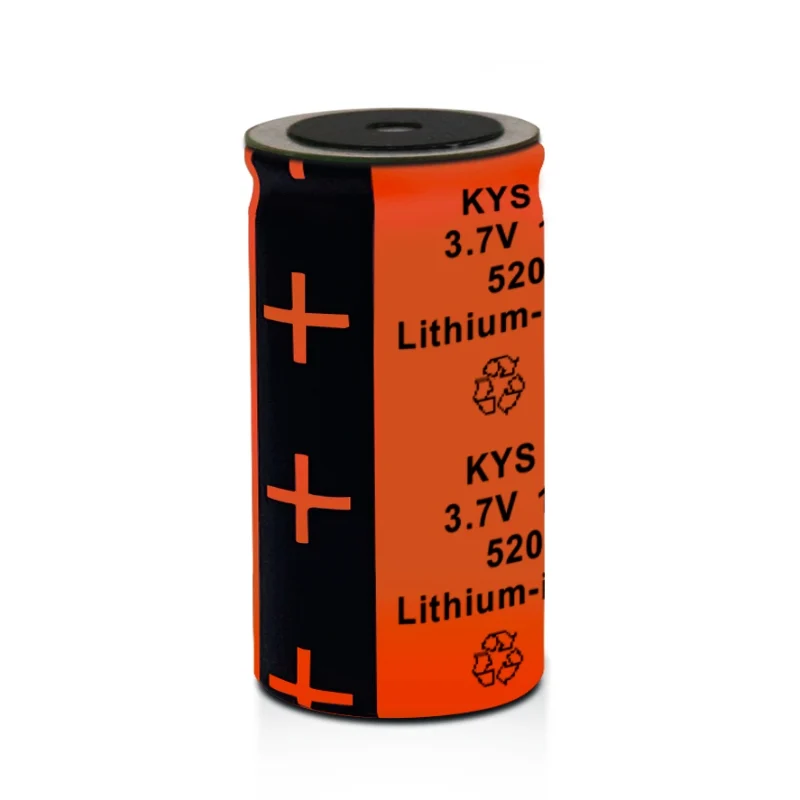

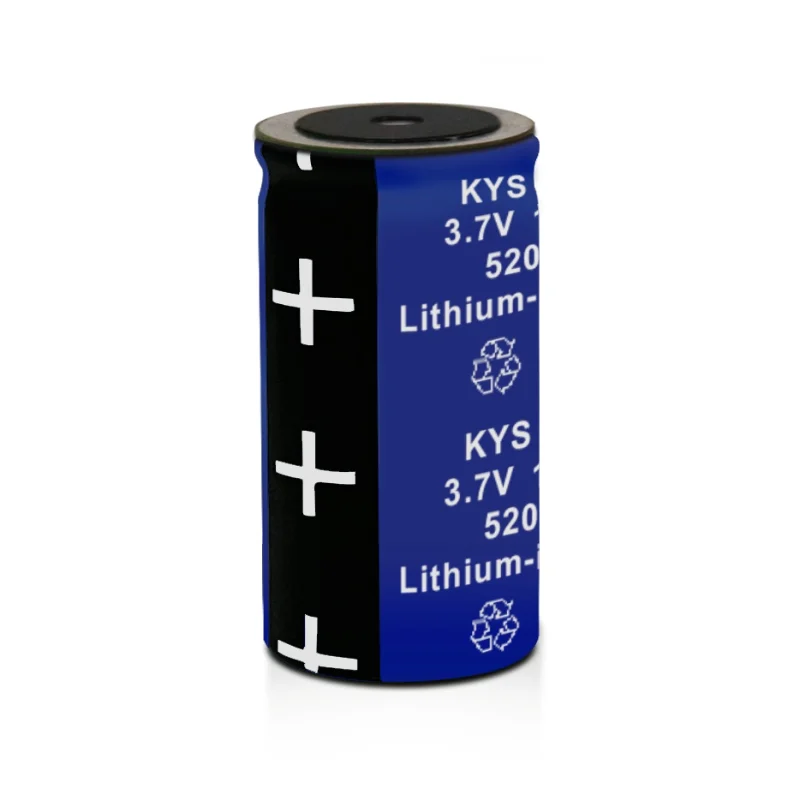

16300 Литиевый конденсаторный аккумулятор 3,7 В

Lithium Capacitor Battery Structural Overview

Engineers design the lithium capacitor battery (16300, 3.7V class) using a hybrid electrochemical architecture that integrates lithium-ion electrode chemistry with capacitor-type charge behavior. First, they arrange cathode foil, anode foil, and a microporous separator into a layered strip, and they wind the structure into a compact cylindrical core under controlled tension. Meanwhile, they maintain precise alignment throughout the winding stage to ensure uniform layer distribution. After that, technicians insert the rolled assembly into a rigid metal casing and stabilize its internal geometry before electrolyte injection begins.

Состав материала и электрохимическая система

Manufacturers coat lithium metal oxide compounds onto aluminum foil to form the cathode layer, while they apply graphite-based slurry onto copper foil to construct the anode layer. In addition, they introduce a PP/PE multilayer separator that supports ion transport while preventing direct electrode contact. Furthermore, they prepare a lithium salt electrolyte dissolved in organic carbonate solvents, and they strictly control moisture levels to maintain chemical stability. Meanwhile, the cylindrical housing uses aluminum alloy or steel material to ensure mechanical rigidity and sealing reliability during processing.

Изготовление электродов и процесс намотки

Technicians begin slurry preparation by mixing active powders, conductive additives, and polymer binders into a homogeneous mixture. Then, they coat the slurry onto metallic foils using precision coating equipment and dry the electrodes under staged thermal conditions. Subsequently, they apply calendaring pressure to control electrode density and surface uniformity. After cutting the foils into narrow strips, they feed them into automated winding machines to form a tightly packed spiral core. At the same time, they weld electrode tabs using ultrasonic or resistance methods to ensure stable electrical connections.

Formation Cycling and Industrial Standard Control

Engineers initiate formation cycling to activate electrochemical reactions and stabilize interfacial layers within the cell. Then, they conduct aging tests under controlled temperature environments to evaluate voltage stability and impedance behavior. Finally, quality teams perform dimensional inspection, internal resistance measurement, and sealing verification. Throughout production, manufacturers follow IEC 62133 and UN38.3 standards, ensuring structural integrity, electrical consistency, and transport safety compliance for lithium capacitor battery manufacturing.

Особенности продукта

1. 🛠️ Настраиваемое
   Можно настроить под требования клиента
2. ⚡ Высокая сила
   Максимальная скорость разряда 20°C доступна
3. ⏱️ Длинный цикл жизни
   Удовлетворяет долгосрочные потребности в использовании продукции
4. 🛡️ Высокая безопасность
   Прошёл комплексные испытания безопасности
5. 🔋 Истинная номинальная вместимость
   Соответствует проектной мощности продукта
6. ⚛️ Многохимические варианты
   Охватывает системы LCO, NCM, NCA и LFP
7. 🧰 Механизм многозащитной защиты
   Встроенная защитная плата с защитой от перезарядки, перерасхода, перенапряжения и защиты от короткого замыкания

Области применения продукции

Этот продукт подходит для различных портативных и управляемых электронных устройств, с типичными применениями:

• Личный уход и здоровье: Электрические зубные щётки, косметические устройства, фитнес-трекеры, медицинские устройства

• Smart Digital & Audio: Наушники, колонки, небулайзеры, игрушки, светильники

• Финансовая оплата и офис: POS-машины, USB-жетоны, портативные принтеры
